OpenCrowbar Design Principles: Emergent services [Series 5 of 6]

This is part 5 of 6 in a series discussing the principles behind the “ready state” and other concepts implemented in OpenCrowbar.  The content is reposted from the OpenCrowbar docs repo.

Emergent services

We see data center operations as a duel between conflicting priorities. On one hand, the environment is constantly changing and systems must adapt quickly to these changes. On the other hand, users of the infrastructure expect it to provide stable and consistent services for consumption. We’ve described that as “always ready, never finished.”

Our solution to this duality to expect that the infrastructure Crowbar builds is decomposed into well-defined service layers that can be (re)assembled dynamically. Rather than require any component of the system to be in a ready state, Crowbar design principles assume that we can automate the construction of every level of the infrastructure from bios to network and application. Consequently, we can hold off (re)making decisions at the bottom levels until we’ve figured out that we’re doing at the top.

Effectively, we allow the overall infrastructure services configuration to evolve or emerge based on the desired end use. These concepts are built on computer science principles that we have appropriated for Ops use; since we also subscribe to Opscode “infrastructure as code”, we believe that these terms are fitting in a DevOps environment. In the next pages, we’ll explore the principles behind this approach including concepts around simulated annealing, late binding, attribute injection and emergent design.

Emergent (aka iterative or evolutionary) design challenges the traditional assumption that all factors must be known before starting

  • Dependency graph – multidimensional relationship
  • High degree of reuse via abstraction and isolation of service boundaries.
  • Increasing complexity of deployments means more dependencies
  • Increasing revision rates of dependencies but with higher stability of APIs

OpenCrowbar Design Principles: Simulated Annealing [Series 4 of 6]

This is part 4 of 6 in a series discussing the principles behind the “ready state” and other concepts implemented in OpenCrowbar.  The content is reposted from the OpenCrowbar docs repo.

Simulated Annealing

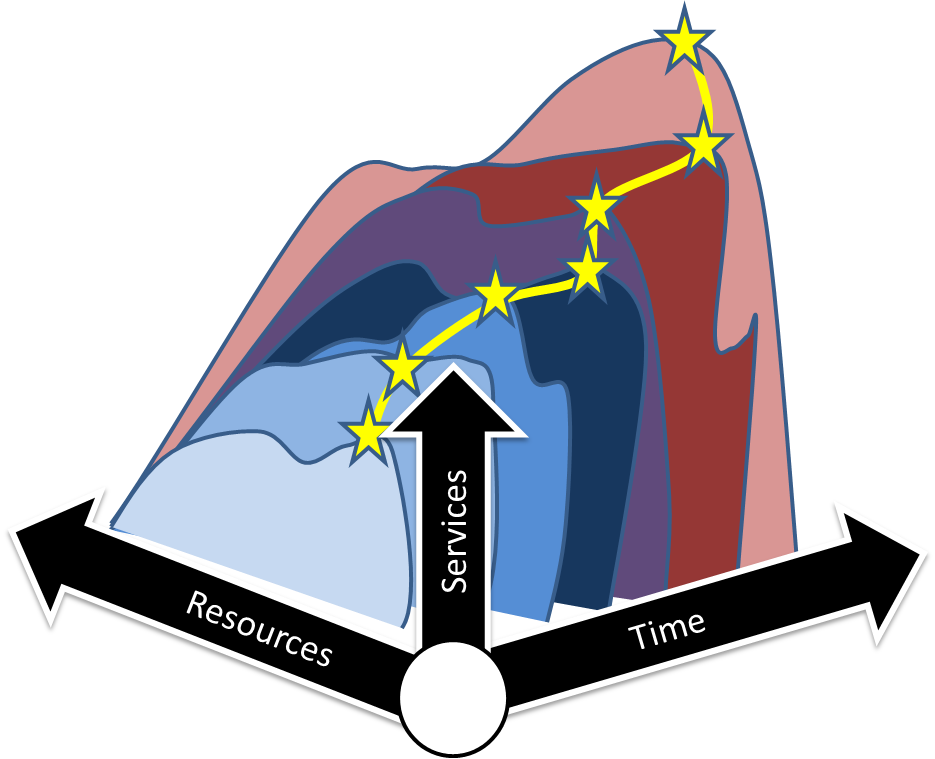

simulated_annealingSimulated Annealing is a modeling strategy from Computer Science for seeking optimum or stable outcomes through iterative analysis. The physical analogy is the process of strengthening steel by repeatedly heating, quenching and hammering. In both computer science and metallurgy, the process involves evaluating state, taking action, factoring in new data and then repeating. Each annealing cycle improves the system even though we may not know the final target state.

Annealing is well suited for problems where there is no mathematical solution, there’s an irregular feedback loop or the datasets change over time. We have all three challenges in continuous operations environments. While it’s clear that a deployment can modeled as directed graph (a mathematical solution) at a specific point in time, the reality is that there are too many unknowns to have a reliable graph. The problem is compounded because of unpredictable variance in hardware (NIC enumeration, drive sizes, BIOS revisions, network topology, etc) that’s even more challenging if we factor in adapting to failures. An operating infrastructure is a moving target that is hard to model predictively.

Crowbar implements the simulated annealing algorithm by decomposing the operations infrastructure into atomic units, node-roles, that perform the smallest until of work definable. Some or all of these node-roles are changed whenever the infrastructure changes. Crowbar anneals the environment by exercising the node-roles in a consistent way until system re-stabilizes.

One way to visualize Crowbar annealing is to imagine children who have to cross a field but don’t have a teacher to coordinate. Once student takes a step forward and looks around then another sees the first and takes two steps. Each child advances based on what their peers are doing. None wants to get too far ahead or be left behind. The line progresses irregularly but consistently based on the natural relationships within the group.

To understand the Crowbar Annealer, we have to break it into three distinct components: deployment timeline, annealing and node-role state. The deployment timeline represents externally (user, hardware, etc) initiated changes that propose a new target state. Once that new target is committed, Crowbar anneals by iterating through all the node-roles in a reasonable order. As the Annealer runs the node-roles they update their own state. The aggregate state of all the node-roles determines the state of the deployment.

A deployment is a combination of user and system defined state. Crowbar’s job is to get deployments stable and then maintain over time.

Ops Validation using Development Tests [3/4 series on Operating Open Source Infrastructure]

This post is the third in a 4 part series about Success factors for Operating Open Source Infrastructure.

turning upIn an automated configuration deployment scenario, problems surface very quickly. They prevent deployment and force resolution before progress can be made. Unfortunately, many times this appears to be a failure within the deployment automation. My personal experience has been exactly the opposite: automation creates a “fail fast” environment in which critical issues are discovered and resolved during provisioning instead of sleeping until later.

Our ability to detect and stop until these issues are resolved creates exactly the type of repeatable, successful deployment that is essential to long-term success. When we look at these deployments, the most important success factors are that the deployment is consistent, known and predictable. Our ability to quickly identify and resolve issues that do not match those patterns dramatically improves the long-term stability of the system by creating an environment that has been benchmarked against a known reference.

Benchmarking against a known reference is ultimately the most significant value that we can provide in helping customers bring up complex solutions such as Openstack and Hadoop. Being successful with these deployments over the long term means that you have established a known configuration, and that you have maintained it in a way that is explainable and reference-able to other places.

Reference Implementation

The concept of a reference implementation provides tremendous value in deployment. Following a pattern that is a reference implementation enables you to compare notes, get help and ultimately upgrade and change deployment in known, predictable ways. Customers who can follow and implement a vendors’ reference, or the community’s reference implementation, are able to ask for help on the mailing lists, call in for help and work with the community in ways that are consistent and predictable.

Let’s explore what a reference implementation looks like.

In a reference implementation you have a consistent, known state of your physical infrastructure that has been implemented based upon a RA. That implementation follows a known best practice using standard gear in a consistent, known configuration. You can therefore explain your configuration to a community of other developers, or other people who have similar configuration, and can validate that your problem is not the physical configuration. Fundamentally, everything in a reference implementation is driving towards the elimination of possible failure cause. In this case, we are making sure that the physical infrastructure is not causing problems (getting to a ready state), because other people are using a similar (or identical) physical infrastructure configuration.

The next components of a reference implementation are the underlying software configurations for operating system management monitoring network configuration, IP networking stacks. Pretty much the entire component of the application is riding on. There are a lot of moving parts and complexity in this scenario, witha high likelihood of causing failures. Implementing and deploying the software stacks in an automated way, has enabled us to dramatically reduce the potential for problems caused by misconfiguration. Because the number of permutations of software in the reference stack is so high, it is essential that successful deployment tightly manages what exactly is deployed, in such a way that they can identify, name, and compare notes with other deployments.

Achieving Repeatable Deployments

In this case, our referenced deployment consists of the exact composition of the operating system, infrastructure tooling, and capabilities for the deployment. By having a reference capability, we can ensure that we have the same:

  • Operating system
  • Monitoring
  • Configuration stacks
  • Security tooling
  • Patches
  • Network stack (including bridges and VLAN, IP table configurations)

Each one of these components is a potential failure point in a deployment. By being able to configure and maintain that configuration automatically, we dramatically increase the opportunities for success by enabling customers to have a consistent configuration between sites.

Repeatable reference deployments enable customers to compare notes with Dell and with others in the community. It enables us to take and apply what we have learned from one site to another. For example, if a new patch breaks functionality, then we can quickly determine how that was caused. We can then fix the solution, add in the complimentary fix, and deploy it at that one site. If we are aware that 90% of our other sites have exactly the same configuration, it enables those other sites to avoid a similar problem. In this way, having both a pattern and practice referenced deployment enables the community to absorb or respond much more quickly, and be successful with a changing code base. We found that it is impractical to expect things not to change.

The only thing that we can do is build resiliency for change into these deployments. Creating an automated and tested referenceable deployment is the best way to cope with change.







OpenStack Havana provides foundation for XXaaS you need

Folsom SummitIt’s been a long time, and a lot of summits, since I posted how OpenStack was ready for workloads (back in Cactus!).  We’ve seen remarkable growth of both the platform technology and the community surrounding it.  So much growth that now we’re struggling to define “what is core” for the project and I’m proud be on the Foundation Board helping to lead that charge.

So what’s exciting in Havana?

There’s a lot I am excited about in the latest OpenStack release.

Complete Split of Compute / Storage / Network services

In the beginning, OpenStack IaaS was one service (Nova).  We’ve been breaking that monolith into distinct concerns (Compute, Network, Storage) for the last several releases and I think Havana is the first release where all of the three of the services are robust enough to take production workloads.

This is a major milestone for OpenStack because knowledge that the APIs were changing inhibited adoption.

ENABLING TECH INTEGRATION: Docker & Ceph

We’ve been hanging out with the Ceph and Docker teams, so you can expect to see some interesting.  These two are proof of the a fallacy that only OpenStack projects are critical to OpenStack because neither of these technologies are moving under the official OpenStack umbrella.  I am looking forward to seeing both have dramatic impacts in how cloud deployments.

Docker promises to make Linux Containers (LXC) more portable and easier to use.  This paravirtualization approach provides near bear metal performance without compromising VM portability.  More importantly, you can oversubscribe LXC much more than VMs.  This allows you to dramatically improve system utilization and unlocks some other interesting quality of service tricks.

Ceph is showing signs of becoming the scale out storage king.  Beyond its solid data dispersion algorithm, a key aspect of its mojo is that is delivers both block and object storage.  I’ve seen a lot of interest in consolidating both types of storage into a single service.  Ceph delivers on that plus performance and cost.  It’s a real winner.

Crowbar Integration & High Availability Configuration!

We’ve been making amazing strides in the Crowbar + OpenStack integration!  As usual, we’re planning our zero day community build (on the “Roxy” branch) to get people started thinking about operationalizing OpenStack.   This is going to be especially interesting because we’re introducing it first on Crowbar 1 with plans to quickly migrate to Crowbar 2 where we can leverage the attribute injection pattern that OpenStack cookbooks also use.  Ultimately, we expect those efforts to converge.  The fact that Dell is putting reference implementations of HA deployment best practices into the open community is a major win for OpenStack.

Tests, Tests, Tests & Continuous Delivery

OpenStack continue to drive higher standards for reviews, integration and testing.  I’m especially excited to the volume and activity around our review system (although backlogs in reviews are challenges).  In addition, the community continues to invest in the test suites like the Tempest project.  These are direct benefits to operators beyond simple code quality.  Our team uses Tempest to baseline field deployments.  This means that OpenStack test suites help validate live deployments, not just lab configurations.

We achieve a greater level of quality when we gate code check-ins on tests that matter to real deployments.   In fact, that premise is the basis for our “what is core” process.  It also means that more operators can choose to deploy OpenStack continuously from trunk (which I consider to be a best practice scale ops).

Where did we fall short?

With growth comes challenges, Havana is most complex release yet.  The number of projects that are part the OpenStack integrated release family continues to expand.  While these new projects show the powerful innovation engine at work with OpenStack, they also make the project larger and more difficult to comprehend (especially for n00bs).  We continue to invest in Crowbar as a way to serve the community by making OpenStack more accessible and providing open best practices.

We are still struggling to resolve questions about interoperability (defining core should help) and portability.  We spent a lot of time at the last two summits on interoperability, but I don’t feel like we are much closer than before.  Hopefully, progress on Core will break the log jam.

Looking ahead to Ice House?

I and many leaders from Dell will be at the Ice House Summit in Hong Kong listening and learning.

The top of my list is the family of XXaaS services (Database aaS, Load Balanacer aaS, Firewall aaS, etc) that have appeared.  I’m a firm believer that clouds are more than compute+network+storage.  With a stable core, OpenStack is ready to expand into essential platform services.

If you are at the summit, please join Dell (my employer) and Intel for the OpenStack Summit Welcome Reception (RSVP!) kickoff networking and social event on Tuesday November 5, 2013 from 6:30 – 8:30pm at the SkyBistro in the SkyCity Marriott.   My teammate, Kamesh Pemmaraju, has a complete list of all Dell the panels and events.

OpenStack’s Test Driven Core > it’s where I think “what is core” discussions are heading

THIS POST IS #7 IN A SERIES ABOUT “WHAT IS CORE.”

core lighthouse

In helping drive OpenStack’s “what is core” dialog, I’ve had the privilege of listening to a lot of viewpoints about what we are and should be.  Throughout the process, I’ve tried to put aside my positions and be an objective listener.  In this post, I’m expressing where I think this effort will lead us.

If OpenStack culture values implementation over API then our core definition should too.

How do we make a core definition that values implementation over API?  I think that our definition should also be based on what’s working in the field over qualitative definitional statements.  The challenge in defining core is to find a way to reinforce this culture in a quantifiable way.

The path forward lies in concrete decomposition (and not because you were talked to death on the sidewalk).

Concrete decomposition means breaking Core into small units for discussion like “is provisioning a single server critical?”  More importantly, we can use tests as the unit for decomposition.  Tests are gold when it comes to defining expected OpenStack behaviors.  In our tests, we have a description of which use-cases have been implemented.  Discussing those use-cases is much more finite than arguing over stable versus innovative development methodologies.

I believe that we are moving toward community tests playing an essential role in OpenStack.  As a believer in the value of BDD and CI, I think that placing high value on tests improves the project in fundamental ways beyond defining Core.  It creates a commercial motivation for contributors to add tests, inches us toward interoperability, and helps drive stability for users.  In these ways, using tests to measure OpenStack drives the right behaviors for the project.

Another consequence I anticipate is a new role for the User Committee (UC).  With a growing body of tests, the OpenStack Foundation needs a way to figure out the subset of tests which are required.  While the Technical Committee (TC) should demand a comprehensive suite of tests for all projects, they lack the perspective to figure out which use-cases are being implemented by our user base.  Gathering that data is already the domain of the UC so asking them to match implemented use-cases to tests seems like a natural extension of their role.

By having data supporting the elevation of tests to must-pass status, I envision a definition of Core that is based on how OpenStack is implemented.  That, in turn, will help drive our broader interoperability objectives.

7 takeaways from DevOps Days Austin

Block Tables

I spent Tuesday and Wednesday at DevOpsDays Austin and continue to be impressed with the enthusiasm and collaborative nature of the DOD events.  We also managed to have a very robust and engaged twitter backchannel thanks to an impressive pace set by Gene Kim!

I’ve still got a 5+ post backlog from the OpenStack summit, but wanted to do a quick post while it’s top of mind.

My takeaways from DevOpsDays Austin:

  1. DevOpsDays spends a lot of time talking about culture.  I’m a huge believer on the importance of culture as the foundation for the type of fundamental changes that we’re making in the IT industry; however, it’s also a sign that we’re still in the minority if we have to talk about culture evangelism.
  2. Process and DevOps are tightly coupled.  It’s very clear that Lean/Agile/Kanban are essential for DevOps success (nice job by Dominica DeGrandis).  No one even suggested DevOps+Waterfall as a joke (but Patrick Debois had a picture of a xeroxed butt in his preso which is pretty close).
  3. Still need more Devs people to show up!  My feeling is that we’ve got a lot of operators who are engaging with developers and fewer developers who are engaging with operators (the “opsdev” people).
  4. Chef Omnibus installer is very compelling.  This approach addresses issues with packaging that were created because we did not have configuration management.  Now that we have good tooling we separate the concerns between bits, configuration, services and dependencies.  This is one thing to watch and something I expect to see in Crowbar.
  5. The old mantra still holds: If something is hard, do it more often.
  6. Eli Goldratt’s The Goal is alive again thanks to Gene Kims’s smart new novel, The Phoenix project, about DevOps and IT  (I highly recommend both, start with Kim).
  7. Not DevOps, but 3D printing is awesome.  This is clearly a game changing technology; however, it takes some effort to get right.  Dell brought a Solidoodle 3D printer to the event to try and print OpenStack & Crowbar logos (watch for this in the future).

I’d be interested in hearing what other people found interesting!  Please comment here and let me know.

DevOps approaches to upgrade: Cube Visualization

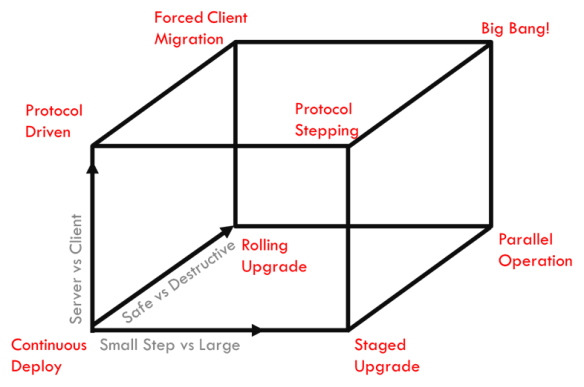

I’m working on my OpenStack summit talk about DevOps upgrade patterns and got to a point where there are three major vectors to consider:

  1. Step Size (shown as X axis): do we make upgrades in small frequent steps or queue up changes into larger bundles? Larger steps mean that there are more changes to be accommodated simultaneously.
  2. Change Leader (shown as Y axis): do we upgrade the server or the client first? Regardless of the choice, the followers should be able to handle multiple protocol versions if we are going to have any hope of a reasonable upgrade.
  3. Safeness (shown as Z axis): do the changes preserve the data and productivity of the entity being upgraded? It is simpler to assume to we simply add new components and remove old components; this approach carries significant risks or redundancy requirements.

I’m strongly biased towards continuous deployment because I think it reduces risk and increases agility; however, I laying out all the vertices of the upgrade cube help to visualize where the costs and risks are being added into the traditional upgrade models.

Breaking down each vertex:

  1. Continuous Deploy – core infrastructure is updated on a regular (usually daily or faster) basis
  2. Protocol Driven – like changing to HTML5, the clients are tolerant to multiple protocols and changes take a long time to roll out
  3. Staged Upgrade – tightly coordinate migration between major versions over a short period of time in which all of the components in the system step from one version to the next together.
  4. Rolling Upgrade – system operates a small band of versions simultaneously where the components with the oldest versions are in process of being removed and their capacity replaced with new nodes using the latest versions.
  5. Parallel Operation – two server systems operate and clients choose when to migrate to the latest version.
  6. Protocol Stepping – rollout of clients that support multiple versions and then upgrade the server infrastructure only after all clients have achieved can support both versions.
  7. Forced Client Migration – change the server infrastructure and then force the clients to upgrade before they can reconnect.
  8. Big Bang – you have to shut down all components of the system to upgrade it

This type of visualization helps me identify costs and options. It’s not likely to get much time in the final presentation so I’m hoping to hear in advance if it resonates with others.

PS: like this visualization? check out my “magic 8 cube” for cloud hosting options.
