Boot me up! out-of-band IPMI rocks then shuts up and waits

It’s hard to get excited about re-implementing functionality from v1 unless the v2 happens to also be freaking awesome.   It’s awesome because the OpenCrowbar architecture allows us to it “the right way” with real out-of-band controls against the open WSMAN APIs.

gangnam styleWith out-of-band control, we can easily turn systems on and off using OpenCrowbar orchestration.  This means that it’s now standard practice to power off nodes after discovery & inventory until they are ready for OS installation.  This is especially interesting because many servers RAID and BIOS can be configured out-of-band without powering on at all.

Frankly, Crowbar 1 (cutting edge in 2011) was a bit hacky.  All of the WSMAN control was done in-band but looped through a gateway on the admin server so we could access the out-of-band API.  We also used the vendor (Dell) tools instead of open API sets.

That means that OpenCrowbar hardware configuration is truly multi-vendor.  I’ve got Dell & SuperMicro servers booting and out-of-band managed.  Want more vendors?  I’ll give you my shipping address.

OpenCrowbar does this out of the box and in the open so that everyone can participate.  That’s how we solve this problem as an industry and start to cope with hardware snowflaking.

And this out-of-band management gets even more interesting…

Since we’re talking to servers out-of-band (without the server being “on”) we can configure systems before they are even booted for provisioning.  Since OpenCrowbar does not require a discovery boot, you could pre-populate all your configurations via the API and have the Disk and BIOS settings ready before they are even booted (for models like the Dell iDRAC where the BMCs start immediately on power connect).

Those are my favorite features, but there’s more to love:

  • the new design does not require network gateway (v1 did) between admin and bmc networks (which was a security issue)
  • the configuration will detect and preserves existing assigned IPs.  This is a big deal in lab configurations where you are reusing the same machines and have scripted remote consoles.
  • OpenCrowbar offers an API to turn machines on/off using the out-of-band BMC network.
  • The system detects if nodes have IPMI (VMs & containers do not) and skip configuration BUT still manage to have power control using SSH (and could use VM APIs in the future)
  • Of course, we automatically setup BMC network based on your desired configuration



a Ready State analogy: “roughed in” brings it Home for non-ops-nerds

I’ve been seeing great acceptance on the concept of ops Ready State.  Technologists from both ops and dev immediately understand the need to “draw a line in the sand” between system prep and installation.  We also admit that getting physical infrastructure to Ready State is largely taken for granted; however, it often takes multiple attempts to get it right and even small application changes can require a full system rebuild.

Since even small changes can redefine the ready state requirements, changing Ready State can feel like being told to tear down your house so you remodel the kitchen.

Foundation RawA friend asked me to explain “Ready State” in non-technical terms.  So far, the best analogy that I’ve found is when a house is “Roughed In.”  It’s helpful if you’ve ever been part of house construction but may not be universally accessible so I’ll explain.

Foundation PouredGetting to Rough In means that all of the basic infrastructure of the house is in place but nothing is finished.  The foundation is poured, the plumbing lines are placed, the electrical mains are ready, the roof on and the walls are up.  The house is being built according to architectural plans and major decisions like how many rooms there are and the function of the rooms (bathroom, kitchen, great room, etc).  For Ready State, that’s like having the servers racked and setup with Disk, BIOS, and network configured.

Framed OutWhile we’ve built a lot, rough in is a relatively early milestone in construction.  Even major items like type of roof, siding and windows can still be changed.  Speaking of windows, this is like installing an operating system in Ready State.  We want to consider this as a distinct milestone because there’s still room to make changes.  Once the roof and exteriors are added, it becomes much more disruptive and expensive to make.

Roughed InOnce the house is roughed in, the finishing work begins.  Almost nothing from roughed in will be visible to the people living in the house.  Like a Ready State setup, the users interact with what gets laid on top of the infrastructure.  For homes it’s the walls, counters, fixtures and following.  For operators, its applications like Hadoop, OpenStack or CloudFoundry.

Taking this analogy back to where we started, what if we could make rebuilding an entire house take just a day?!  In construction, that’s simply not practical; however, we’re getting to a place in Ops where automation makes it possible to reconstruct the infrastructure configuration much faster.

While we can’t re-pour the foundation (aka swap out physical gear) instantly, we should be able to build up from there to ready state in a much more repeatable way.

SDN’s got Blind Spots! What are these Projects Ignoring? [Guest Post by Scott Jensen]

Scott Jensen returns as a guest poster about SDN!  I’m delighted to share his pointed insights that expand on previous 2 Part serieS about NFV and SDN.  I especially like his Rumsfeldian “unknowable workloads”

In my [Scott's] last post, I talked about why SDN is important in cloud environments; however, I’d like to challenge the underlying assumption that SDN cures all ops problems.

SDN implementations which I have looked at make the following base assumption about the physical network.  From the OpenContrails documentation:

The role of the physical underlay network is to provide an “IP fabric” – its responsibility is to provide unicast IP connectivity from any physical device (server, storage device, router, or switch) to any other physical device. An ideal underlay network provides uniform low-latency, non-blocking, high-bandwidth connectivity from any point in the network to any other point in the network.

The basic idea is to build an overlay network on top of the physical network in order to utilize a variety of protocols (Netflow, VLAN, VXLAN, MPLS etc.) and build the networking infrastructure which is needed by the applications and more importantly allow the applications to modify this virtual infrastructure to build the constructs that they need to operate correctly.

All well and good; however, what about the Physical Networks?

Under Provisioned / FunnyEarth.comThat is where you will run into bandwidth issues, QOS issues, latency differences and where the rubber really meets the road.  Ignoring the physical networks configuration can (and probably will) cause the entire system to perform poorly.

Does it make sense to just assume that you have uniform low latency connectivity to all points in the network?  In many cases, it does not.  For example:

  • Accesses to storage arrays have a different traffic pattern than a distributed storage system.
  • Compute resources which are used to house VMs which are running web applications are different than those which run database applications.
  • Some applications are specifically sensitive to certain networking issues such as available bandwidth, Jitter, Latency and so forth.
  • Where others will perform actions over the network at certain times of the day but then will not require the network resources for the rest of the day.  Classic examples of this are system backups or replication events.

Over Provisioned / zilya.netIf the infrastructure you are trying to implement is truly unknown as to how it will be utilized then you may have no choice than to over-provision the physical network.  In building a public cloud, the users will run whichever application they wish it may not be possible to engineer the appropriate traffic patterns.

This unknowable workload is exactly what these types of SDN projects are trying to target!

When designing these systems you do have a good idea of how it will be utilized or at least how specific portions of the system will be utilized and you need to account for that when building up the physical network under the SDN.

It is my belief that SDN applications should not just create an overlay.  That is part of the story, but should also take into account the physical infrastructure and assist with modifying the configuration of the Physical devices.  This balance achieves the best use of the network for both the applications which are running in the environment AND for the systems which they run on or rely upon for their operations.

Correctly ProvisionedWe need to reframe our thinking about SDN because we cannot just keep assuming that the speeds of the network will follow Moore’s Law and that you can assume that the Network is an unlimited resource.

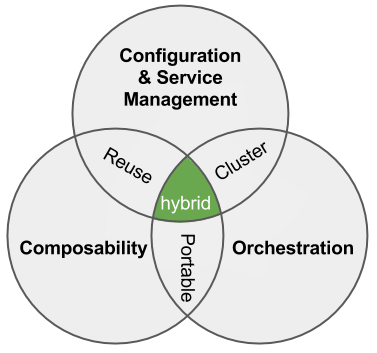

Ops Bridges > Building a Sharable Ops Infrastructure with Composable Tool Chain Orchestration

This posted started from a discussion with Judd Maltin that he documented in a post about “wanting a composable run deck.”

Fitz and Trantrums: Breaking the Chains of LoveI’ve had several conversations comparing OpenCrowbar with other “bare metal provisioning” tools that do thing like serve golden images to PXE or IPXE server to help bootstrap deployments.  It’s those are handy tools, they do nothing to really help operators drive system-wide operations; consequently, they have a limited system impact/utility.

In building the new architecture of OpenCrowbar (aka Crowbar v2), we heard very clearly to have “less magic” in the system.  We took that advice very seriously to make sure that Crowbar was a system layer with, not a replacement to, standard operations tools.

Specifically, node boot & kickstart alone is just not that exciting.  It’s a combination of DHCP, PXE, HTTP and TFTP or DHCP and an IPXE HTTP Server.   It’s a pain to set this up, but I don’t really get excited about it anymore.   In fact, you can pretty much use open ops scripts (Chef) to setup these services because it’s cut and dry operational work.

Note: Setting up the networking to make it all work is perhaps a different question and one that few platforms bother talking about.

So, if doing node provisioning is not a big deal then why is OpenCrowbar important?  Because sustaining operations is about ongoing system orchestration (we’d say an “operations model“) that starts with provisioning.

It’s not the individual services that’s critical; it’s doing them in a system wide sequence that’s vital.

Crowbar does NOT REPLACE the services.  In fact, we go out of our way to keep your proven operations tool chain.  We don’t want operators to troubleshoot our IPXE code!  We’d much rather use the standard stuff and orchestrate the configuration in a predicable way.

In that way, OpenCrowbar embraces and composes the existing operations tool chain into an integrated system of tools.  We always avoid replacing tools.  That’s why we use Chef for our DSL instead of adding something new.

What does that leave for Crowbar?  Crowbar is providing a physical infratsucture targeted orchestration (we call it “the Annealer”) that coordinates this tool chain to work as a system.  It’s the system perspective that’s critical because it allows all of the operational services to work together.

For example, when a node is added then we have to create v4 and v6 IP address entries for it.  This is required because secure infrastructure requires reverse DNS.  If you change the name of that node or add an alias, Crowbar again needs to update the DNS.  This had to happen in the right sequence.  If you create a new virtual interface for that node then, again, you need to update DNS.   This type of operational housekeeping is essential and must be performed in the correct sequence at the right time.

The critical insight is that Crowbar works transparently alongside your existing operational services with proven configuration management tools.  Crowbar connects links in your tool chain but keeps you in the driver’s seat.

OpenCrowbar stands up 100 node community challenge

OpenCrowbar community contributors are offering a “100 Node Challenge” by volunteering to setup a 100+ node Crowbar system to prove out the v2 architecture at scale.  We picked 100* nodes since we wanted to firmly break the Crowbar v1 upper ceiling.

going up!The goal of the challenge is to prove scale of the core provisioning cycle.  It’s intended to be a short action (less than a week) so we’ll need advanced information about the hardware configuration.  The expectation is to do a full RAID/Disk hardware configuration beyond the base IPMI config before laying down the operating system.

The challenge logistics starts with an off-site prep discussion of the particulars of the deployment, then installing OpenCrowbar at the site and deploying the node century.  We will also work with you about using OpenCrowbar to manage the environment going forward.

Sound too good to be true?  Well, as community members are doing this on their own time, we are only planning one challenge candidate and want to find the right target.
We will not be planning custom code changes to support the deployment, however, we would be happy to work with you in the community to support your needs.  If you want help to sustain the environment or have longer term plans, I have also been approached by community members who willing to take on full or part-time Crowbar consulting engagements.
Let’s get rack’n!
* we’ll consider smaller clusters but you have to buy the drinks and pizza.

You need a Squid Proxy fabric! Getting Ready State Best Practices

Sometimes a solving a small problem well makes a huge impact for operators.  Talking to operators, it appears that automated configuration of Squid does exactly that.

Not a SQUID but...

If you were installing OpenStack or Hadoop, you would not find “setup a squid proxy fabric to optimize your package downloads” in the install guide.   That’s simply out of scope for those guides; however, it’s essential operational guidance.  That’s what I mean by open operations and creating a platform for sharing best practice.

Deploying a base operating system (e.g.: Centos) on a lot of nodes creates bit-tons of identical internet traffic.  By default, each node will attempt to reach internet mirrors for packages.  If you multiply that by even 10 nodes, that’s a lot of traffic and a significant performance impact if you’re connection is limited.

For OpenCrowbar developers, the external package resolution means that each dev/test cycle with a node boot (which is up to 10+ times a day) is bottle necked.  For qa and install, the problem is even worse!

Our solution was 1) to embed Squid proxies into the configured environments and the 2) automatically configure nodes to use the proxies.   By making this behavior default, we improve the overall performance of a deployment.   This further improves the overall network topology of the operating environment while adding improved control of traffic.

This is a great example of how Crowbar uses existing operational tool chains (Chef configures Squid) in best practice ways to solve operations problems.  The magic is not in the tool or the configuration, it’s that we’ve included it in our out-of-the-box default orchestrations.

It’s time to stop fumbling around in the operational dark.  We need to compose our tool chains in an automated way!  This is how we advance operational best practice for ready state infrastructure.

OpenCrowbar Design Principles: Attribute Injection [Series 6 of 6]

This is part 5 of 6 in a series discussing the principles behind the “ready state” and other concepts implemented in OpenCrowbar.  The content is reposted from the OpenCrowbar docs repo.

Attribute Injection

Attribute Injection is an essential aspect of the “FuncOps” story because it helps clean boundaries needed to implement consistent scripting behavior between divergent sites.

attribute_injectionIt also allows Crowbar to abstract and isolate provisioning layers. This operational approach means that deployments are composed of layered services (see emergent services) instead of locked “golden” images. The layers can be maintained independently and allow users to compose specific configurations a la cart. This approach works if the layers have clean functional boundaries (FuncOps) that can be scoped and managed atomically.

To explain how Attribute Injection accomplishes this, we need to explore why search became an anti-pattern in Crowbar v1. Originally, being able to use server based search functions in operational scripting was a critical feature. It allowed individual nodes to act as part of a system by searching for global information needed to make local decisions. This greatly added Crowbar’s mission of system level configuration; however, it also created significant hidden interdependencies between scripts. As Crowbar v1 grew in complexity, searches became more and more difficult to maintain because they were difficult to correctly scope, hard to centrally manage and prone to timing issues.

Crowbar was not unique in dealing with this problem – the Attribute Injection pattern has become a preferred alternative to search in integrated community cookbooks.

Attribute Injection in OpenCrowbar works by establishing specific inputs and outputs for all state actions (NodeRole runs). By declaring the exact inputs needed and outputs provided, Crowbar can better manage each annealing operation. This control includes deployment scoping boundaries, time sequence of information plus override and substitution of inputs based on execution paths.

This concept is not unique to Crowbar. It has become best practice for operational scripts. Crowbar simply extends to paradigm to the system level and orchestration level.

Attribute Injection enabled operations to be:

  • Atomic – only the information needed for the operation is provided so risk of “bleed over” between scripts is minimized. This is also a functional programming preference.
  • Isolated Idempotent – risk of accidentally picking up changed information from previous runs is reduced by controlling the inputs. That makes it more likely that scripts can be idempotent.
  • Cleanly Scoped – information passed into operations can be limited based on system deployment boundaries instead of search parameters. This allows the orchestration to manage when and how information is added into configurations.
  • Easy to troubleshoot – since the information is limited and controlled, it is easier to recreate runs for troubleshooting. This is a substantial value for diagnostics.

OpenCrowbar Design Principles: Emergent services [Series 5 of 6]

This is part 5 of 6 in a series discussing the principles behind the “ready state” and other concepts implemented in OpenCrowbar.  The content is reposted from the OpenCrowbar docs repo.

Emergent services

We see data center operations as a duel between conflicting priorities. On one hand, the environment is constantly changing and systems must adapt quickly to these changes. On the other hand, users of the infrastructure expect it to provide stable and consistent services for consumption. We’ve described that as “always ready, never finished.”

Our solution to this duality to expect that the infrastructure Crowbar builds is decomposed into well-defined service layers that can be (re)assembled dynamically. Rather than require any component of the system to be in a ready state, Crowbar design principles assume that we can automate the construction of every level of the infrastructure from bios to network and application. Consequently, we can hold off (re)making decisions at the bottom levels until we’ve figured out that we’re doing at the top.

Effectively, we allow the overall infrastructure services configuration to evolve or emerge based on the desired end use. These concepts are built on computer science principles that we have appropriated for Ops use; since we also subscribe to Opscode “infrastructure as code”, we believe that these terms are fitting in a DevOps environment. In the next pages, we’ll explore the principles behind this approach including concepts around simulated annealing, late binding, attribute injection and emergent design.

Emergent (aka iterative or evolutionary) design challenges the traditional assumption that all factors must be known before starting

  • Dependency graph – multidimensional relationship
  • High degree of reuse via abstraction and isolation of service boundaries.
  • Increasing complexity of deployments means more dependencies
  • Increasing revision rates of dependencies but with higher stability of APIs

OpenCrowbar Design Principles: Simulated Annealing [Series 4 of 6]

This is part 4 of 6 in a series discussing the principles behind the “ready state” and other concepts implemented in OpenCrowbar.  The content is reposted from the OpenCrowbar docs repo.

Simulated Annealing

simulated_annealingSimulated Annealing is a modeling strategy from Computer Science for seeking optimum or stable outcomes through iterative analysis. The physical analogy is the process of strengthening steel by repeatedly heating, quenching and hammering. In both computer science and metallurgy, the process involves evaluating state, taking action, factoring in new data and then repeating. Each annealing cycle improves the system even though we may not know the final target state.

Annealing is well suited for problems where there is no mathematical solution, there’s an irregular feedback loop or the datasets change over time. We have all three challenges in continuous operations environments. While it’s clear that a deployment can modeled as directed graph (a mathematical solution) at a specific point in time, the reality is that there are too many unknowns to have a reliable graph. The problem is compounded because of unpredictable variance in hardware (NIC enumeration, drive sizes, BIOS revisions, network topology, etc) that’s even more challenging if we factor in adapting to failures. An operating infrastructure is a moving target that is hard to model predictively.

Crowbar implements the simulated annealing algorithm by decomposing the operations infrastructure into atomic units, node-roles, that perform the smallest until of work definable. Some or all of these node-roles are changed whenever the infrastructure changes. Crowbar anneals the environment by exercising the node-roles in a consistent way until system re-stabilizes.

One way to visualize Crowbar annealing is to imagine children who have to cross a field but don’t have a teacher to coordinate. Once student takes a step forward and looks around then another sees the first and takes two steps. Each child advances based on what their peers are doing. None wants to get too far ahead or be left behind. The line progresses irregularly but consistently based on the natural relationships within the group.

To understand the Crowbar Annealer, we have to break it into three distinct components: deployment timeline, annealing and node-role state. The deployment timeline represents externally (user, hardware, etc) initiated changes that propose a new target state. Once that new target is committed, Crowbar anneals by iterating through all the node-roles in a reasonable order. As the Annealer runs the node-roles they update their own state. The aggregate state of all the node-roles determines the state of the deployment.

A deployment is a combination of user and system defined state. Crowbar’s job is to get deployments stable and then maintain over time.

OpenCrowbar Design Principles: Reintroduction [Series 1 of 6]

While “ready state” as a concept has been getting a lot of positive response, I forget that much of the innovation and learning behind that concept never surfaced as posts here.  The Anvil (2.0) release included the OpenCrowbar team cataloging our principles in docs.  Now it’s time to repost the team’s work into a short series over the next three days.

In architecting the Crowbar operational model, we’ve consistently twisted adapted traditional computer science concepts like late binding, simulated annealing, emergent behavior, attribute injection and functional programming to create a repeatable platform for sharing open operations practice (post 2).

Functional DevOps aka “FuncOps”

Ok, maybe that’s not going to be the 70′s era hype bubble name, but… the operational model behind Crowbar is entering its third generation and its important to understand the state isolation and integration principles behind that model is closer to functional than declarative programming.

Parliament is Crowbar’s official FuncOps sound track

The model is critical because it shapes how Crowbar approaches the infrastructure at a fundamental level so it makes it easier to interact with the platform if you see how we are approaching operations. Crowbar’s goal is to create emergent services.

We’ll expore those topics in this series to explain Crowbar’s core architectural principles.  Before we get into that, I’d like to review some history.

The Crowbar Objective

Crowbar delivers repeatable best practice deployments. Crowbar is not just about installation: we define success as a sustainable operations model where we continuously improve how people use their infrastructure. The complexity and pace of technology change is accelerating so we must have an approach that embraces continuous delivery.

Crowbar’s objective is to help operators become more efficient, stable and resilient over time.

Background

When Greg Althaus (github @GAlhtaus) and Rob “zehicle” Hirschfeld (github @CloudEdge) started the project, we had some very specific targets in mind. We’d been working towards using organic emergent swarming (think ants) to model continuous application deployment. We had also been struggling with the most routine foundational tasks (bios, raid, o/s install, networking, ops infrastructure) when bringing up early scale cloud & data applications. Another key contributor, Victor Lowther (github @VictorLowther) has critical experience in Linux operations, networking and dependency resolution that lead to made significant contributions around the Annealing and networking model. These backgrounds heavily influenced how we approached Crowbar.

First, we started with best of field DevOps infrastructure: Opscode Chef. There was already a remarkable open source community around this tool and an enthusiastic following for cloud and scale operators . Using Chef to do the majority of the installation left the Crowbar team to focus on

crowbar_engineKey Features

  • Heterogeneous Operating Systems – chose which operating system you want to install on the target servers.
  • CMDB Flexibility (see picture) – don’t be locked in to a devops toolset. Attribute injection allows clean abstraction boundaries so you can use multiple tools (Chef and Puppet, playing together).
  • Ops Annealer –the orchestration at Crowbar’s heart combines the best of directed graphs with late binding and parallel execution. We believe annealing is the key ingredient for repeatable and OpenOps shared code upgrades
  • Upstream Friendly – infrastructure as code works best as a community practice and Crowbar use upstream code
  • without injecting “crowbarisms” that were previously required. So you can share your learning with the broader DevOps community even if they don’t use Crowbar.
  • Node Discovery (or not) – Crowbar maintains the same proven discovery image based approach that we used before, but we’ve streamlined and expanded it. You can use Crowbar’s API outside of the PXE discovery system to accommodate Docker containers, existing systems and VMs.
  • Hardware Configuration – Crowbar maintains the same optional hardware neutral approach to RAID and BIOS configuration. Configuring hardware with repeatability is difficult and requires much iterative testing. While our approach is open and generic, the team at Dell works hard to validate a on specific set of gear: it’s impossible to make statements beyond that test matrix.
  • Network Abstraction – Crowbar dramatically extended our DevOps network abstraction. We’ve learned that a networking is the key to success for deployment and upgrade so we’ve made Crowbar networking flexible and concise. Crowbar networking works with attribute injection so that you can avoid hardwiring networking into DevOps scripts.
  • Out of band control – when the Annealer hands off work, Crowbar gives the worker implementation flexibility to do it on the node (using SSH) or remotely (using an API). Making agents optional means allows operators and developers make the best choices for the actions that they need to take.
  • Technical Debt Paydown - We’ve also updated the Crowbar infrastructure to use the latest libraries like Ruby 2, Rails 4, Chef 11. Even more importantly, we’re dramatically simplified the code structure including in repo documentation and a Docker based developer environment that makes building a working Crowbar environment fast and repeatable.

OpenCrowbar (CB2) vs Crowbar (CB1)?

Why change to OpenCrowbar? This new generation of Crowbar is structurally different from Crowbar 1 and we’ve investing substantially in refactoring the tooling, paying down technical debt and cleanup up documentation. Since Crowbar 1 is still being actively developed, splitting the repositories allow both versions to progress with less confusion. The majority of the principles and deployment code is very similar, I think of Crowbar as a single community.

Continue Reading > post 2
